We offer a vast range of Brass Spacer designed for use in various applications. These Brass Spacer are available in Round & Hex shapes. A standoff is used in mechanics and electronics to separate two parts from one another. Standoffs can be many shapes and sizes and made of many different materials. Insulating standoffs keeps two parts from touching each other, thereby preventing an electronic short.

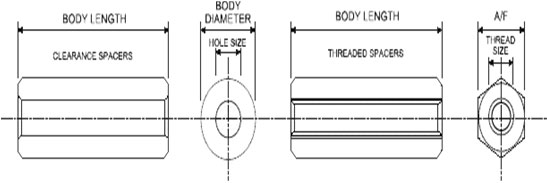

/diagram.jpg)
| No. | Thread Size | Diameter | Hole Size | Body Length |
|---|---|---|---|---|
| 1 | M2 | 4 mm | 2.2 mm | 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 mm |
| 1 | M2.5 | 6 mm | 2.7 mm | 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 mm |
| 3 | M3 | 6 mm | 3.2 mm | 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 20, 25, 30 mm |
| 4 | M4 | 8 mm | 4.3 mm | 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 20, 25, 30 mm |
| 5 | M5 | 10 mm | 5.3 mm | 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 20, 25, 30 mm |
| No. | Body Size Across Flats (A/F) | Thread | Body Length |
|---|---|---|---|
| 1 | 4 mm | M2 | 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 mm |
| 2 | 5.5 mm | M2.5 | 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 mm |
| 3 | 5.5 mm | M3 | 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 mm |
| 4 | 7 mm | M4 | 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 mm |
| 5 | 8 mm | M5 | 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 mm |

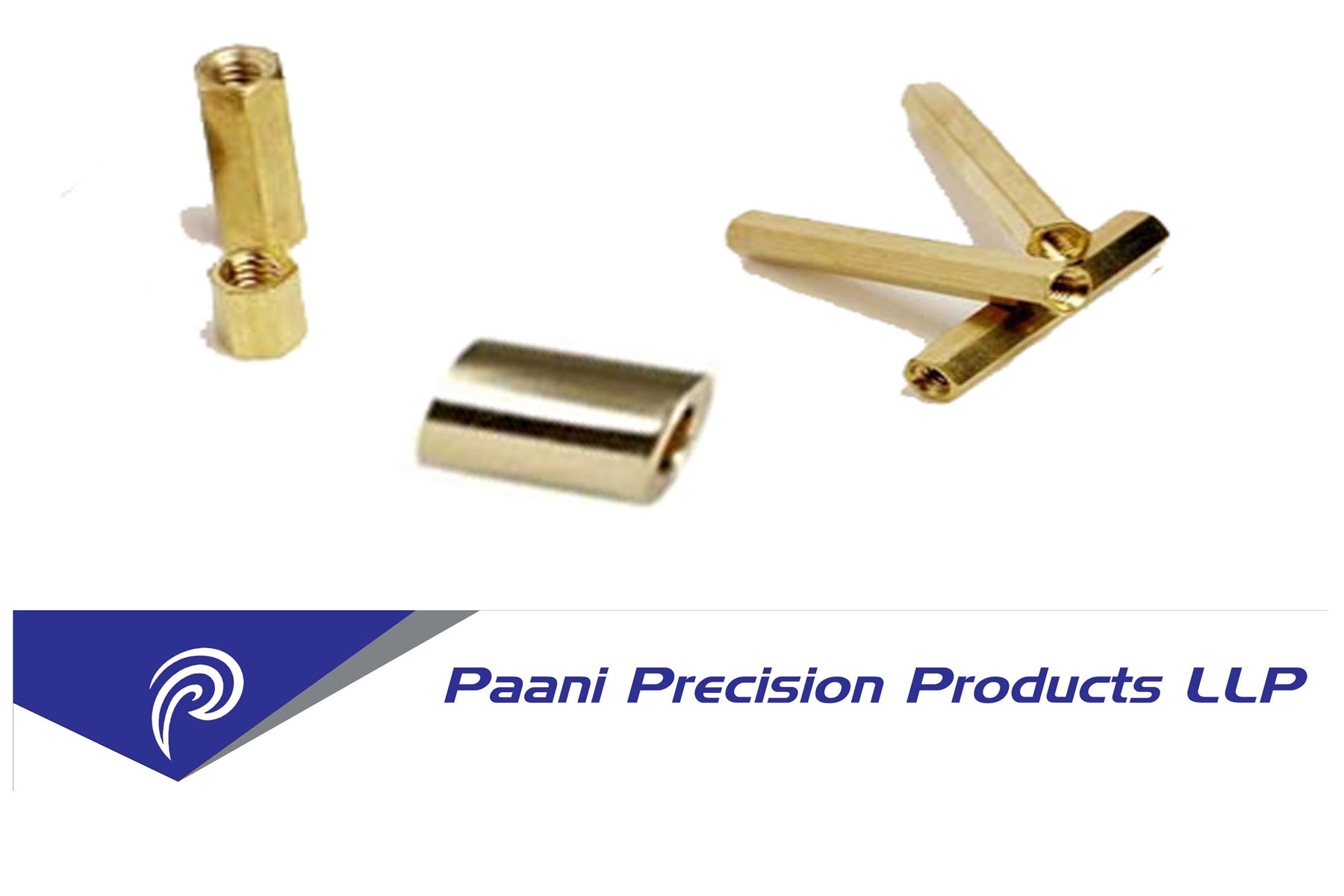

/1-BRASS-HEX-SPACER.jpg)

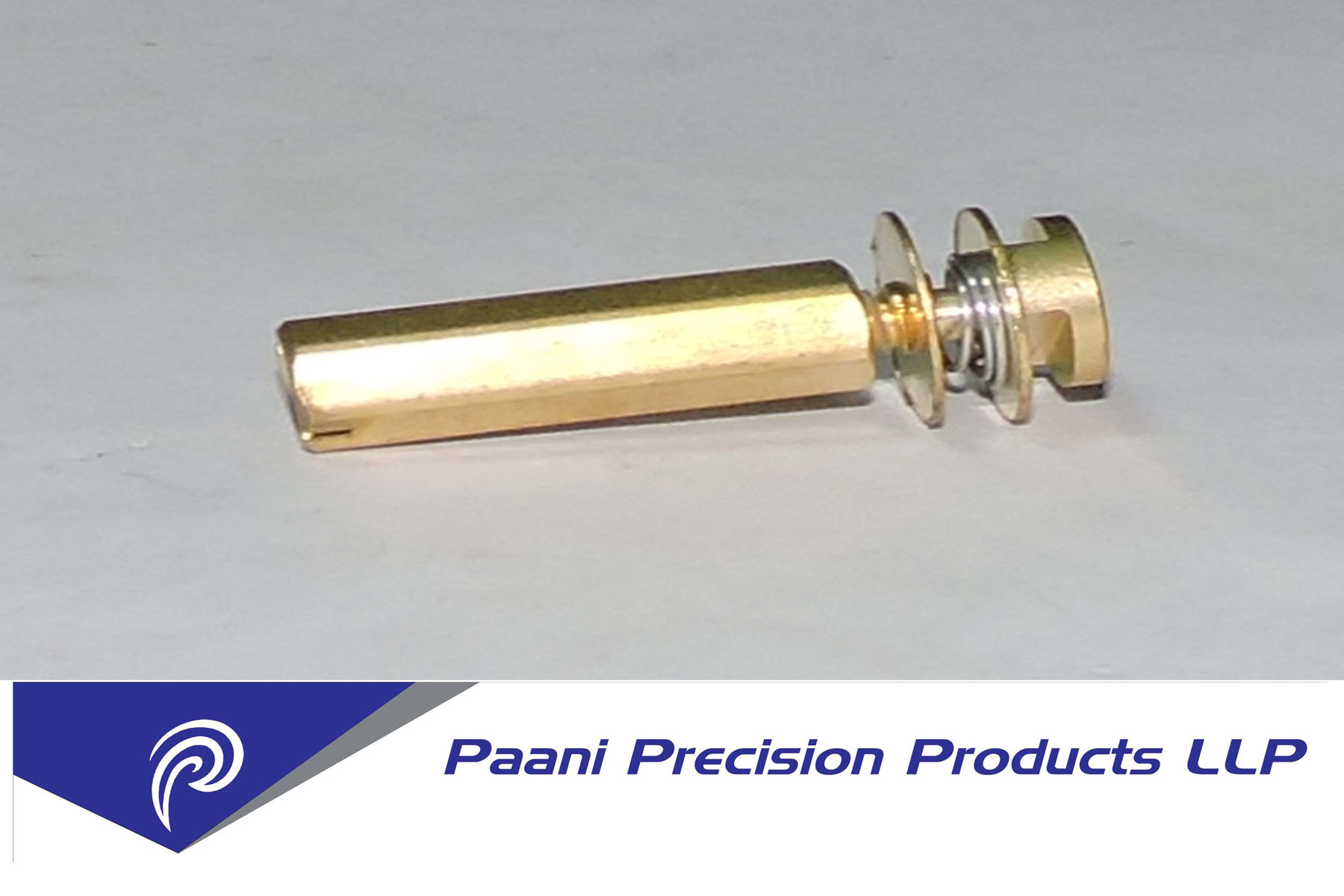

/2-HEX-SPACER-WITH-ASSY.jpg)

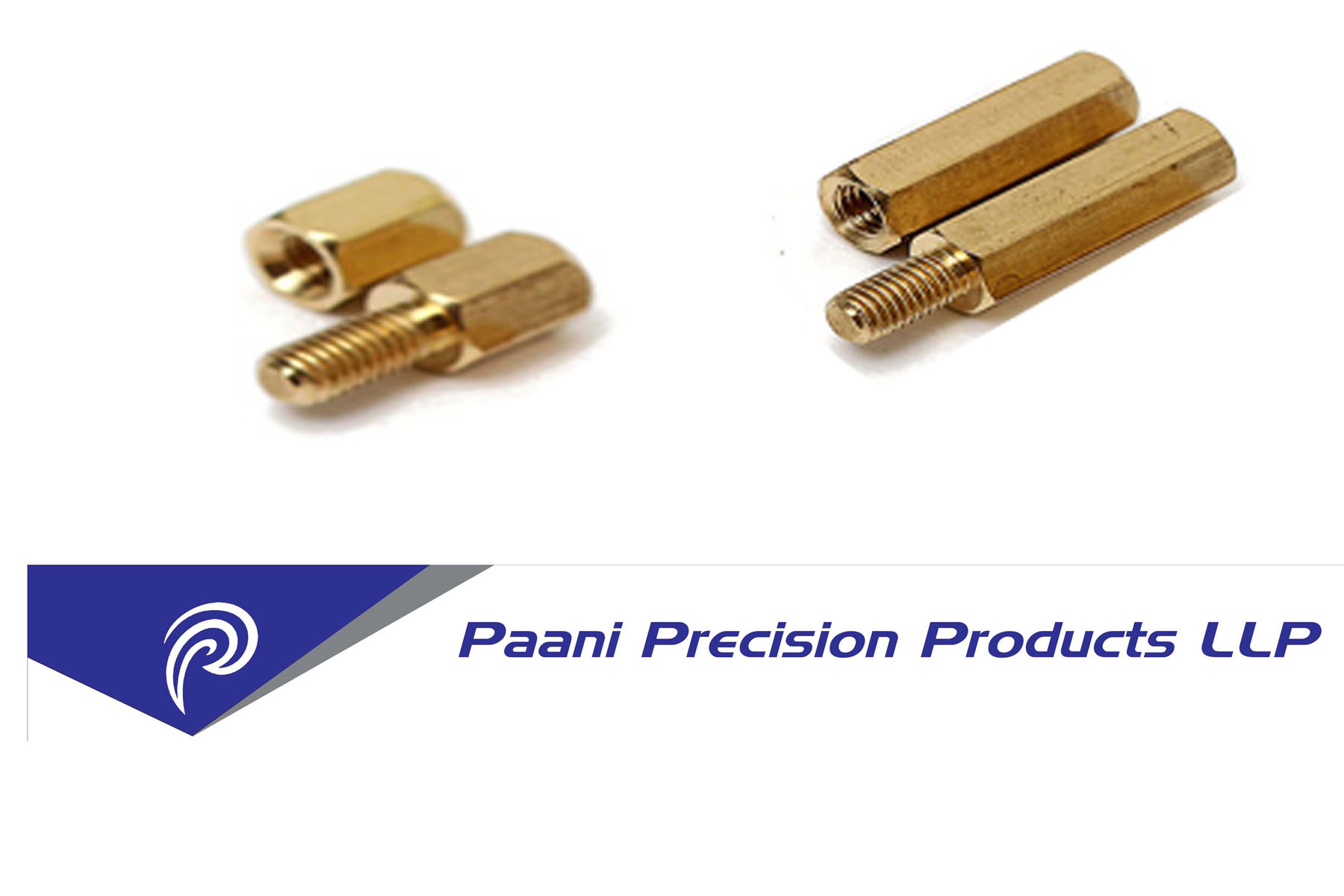

/3-BRASS-MALE-FEMALE-SPACER.jpg)
